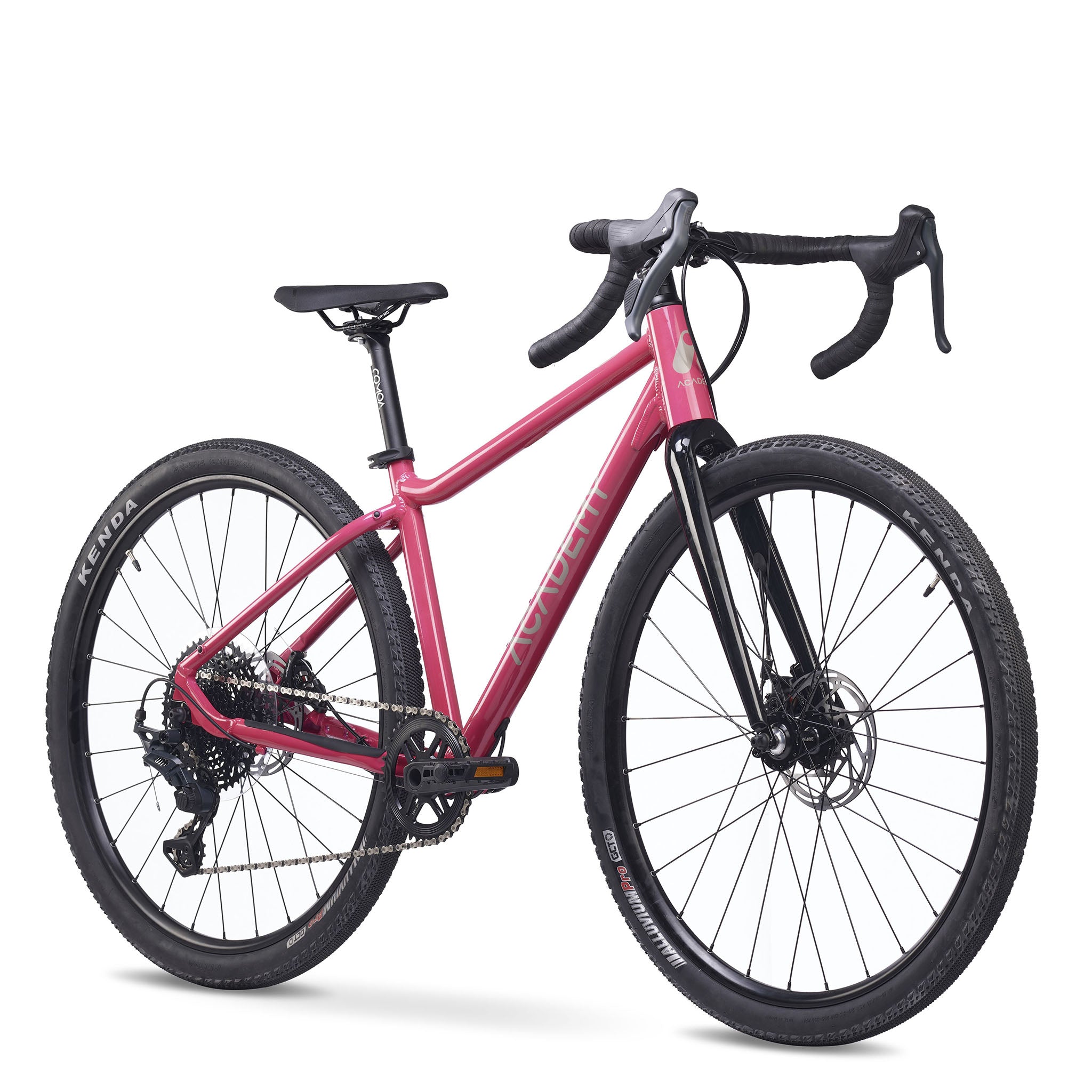

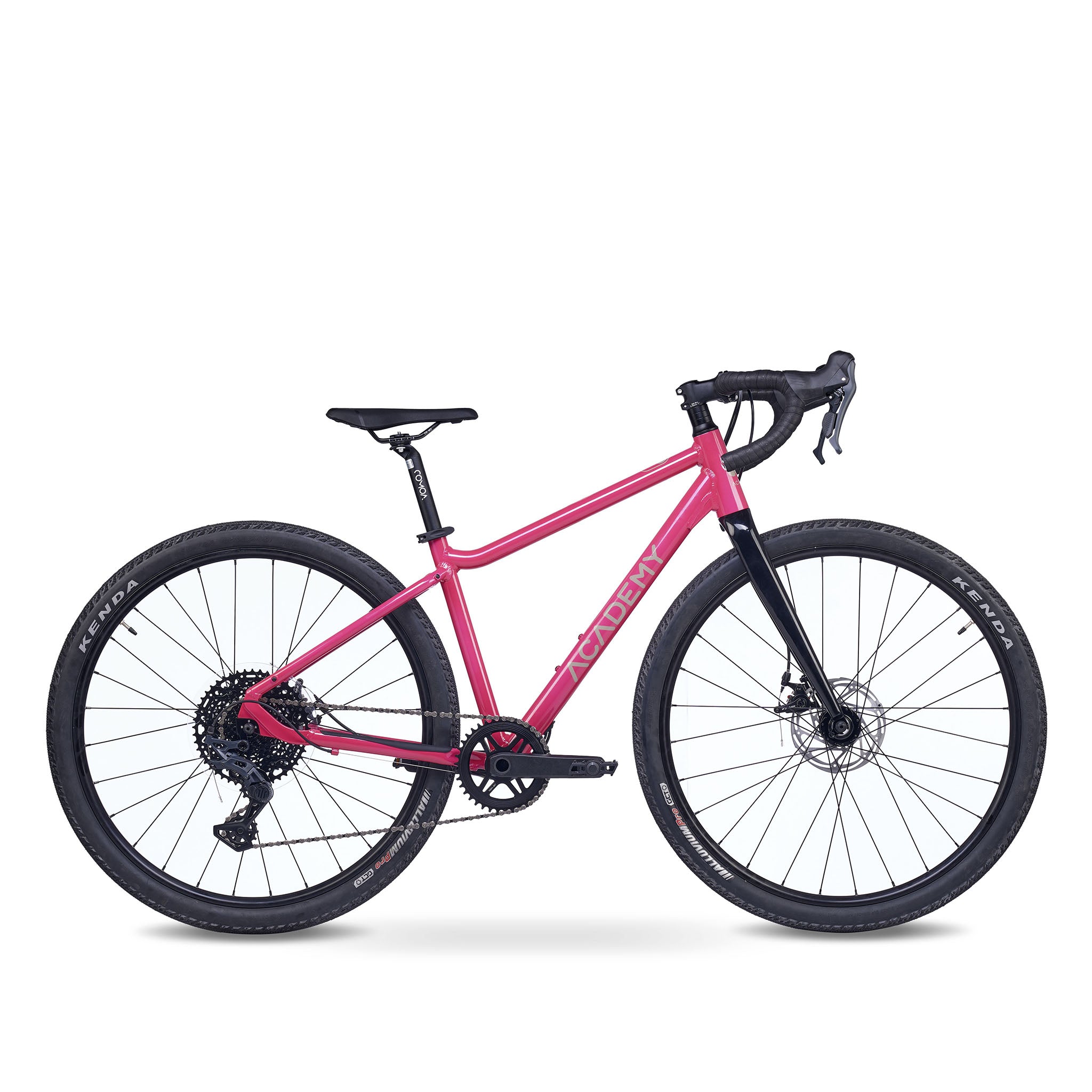

ACADEMY Gravel 7 - 27.5 inch youth bike
No limits on any surface.
10.5kg
from 140 cm
Within Germany we give you free shipping costs for orders over €99.00
Details
Technical details
| Frame/fork | |
| Frame shape | Diamond kink |
| Frame material | Tripple butted aluminum |
| Frame height in cm | 40 |

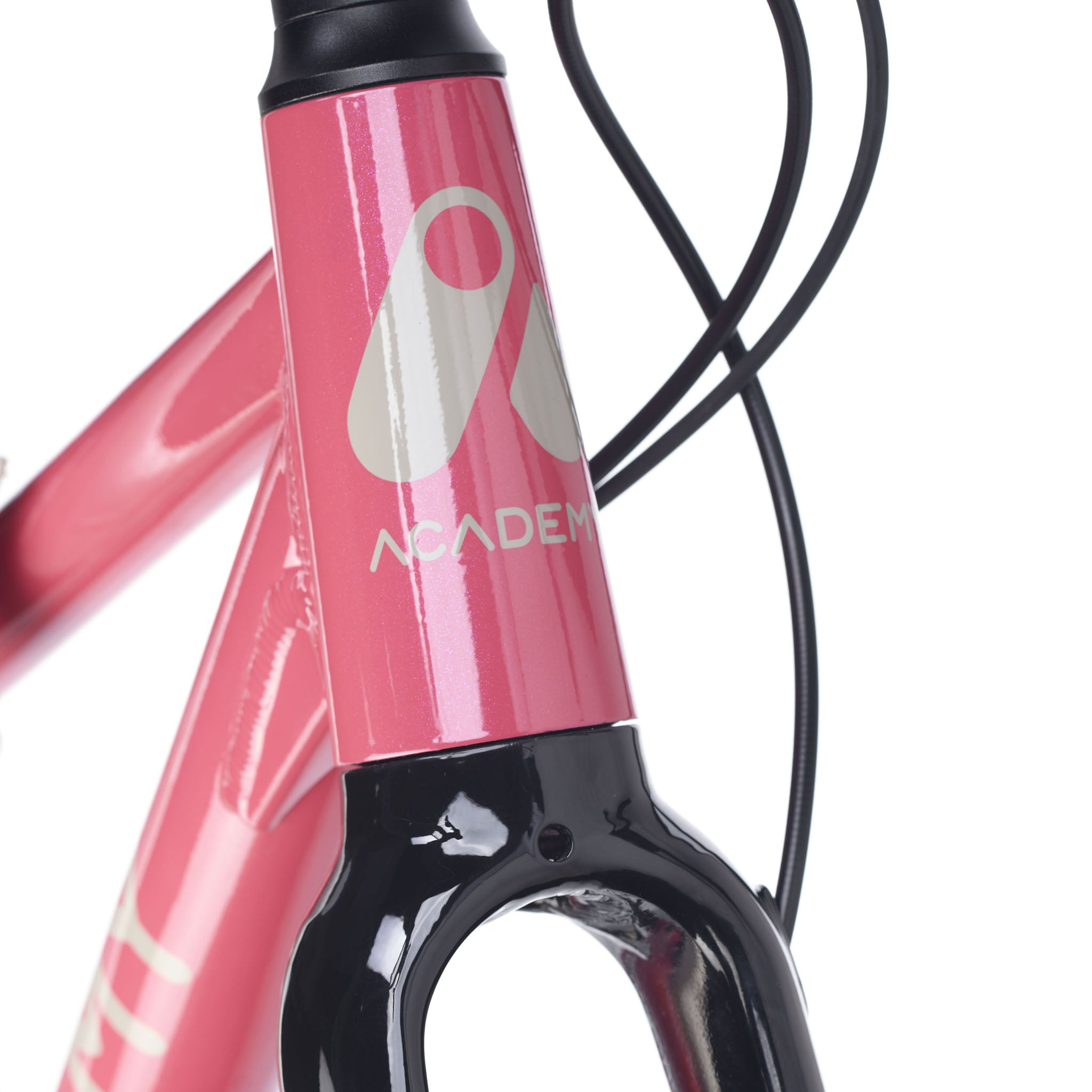

| fork | Carbon rigid fork |
| bottom bracket | Lasco, 68mm |
| Tax rate | Neco H373MS |
| derailleur hanger | |
| cockpit | |
| Handlebars |
Aluminum 31.8mm, width: 400mm, 80mm reach, 16° flare, 121mm drop |
| Handles |
Velo VLT-001 handlebar tape, black |
| Stem |
Aluminum 31.8mm, +/- 7°, 60mm |
| Braking system | |

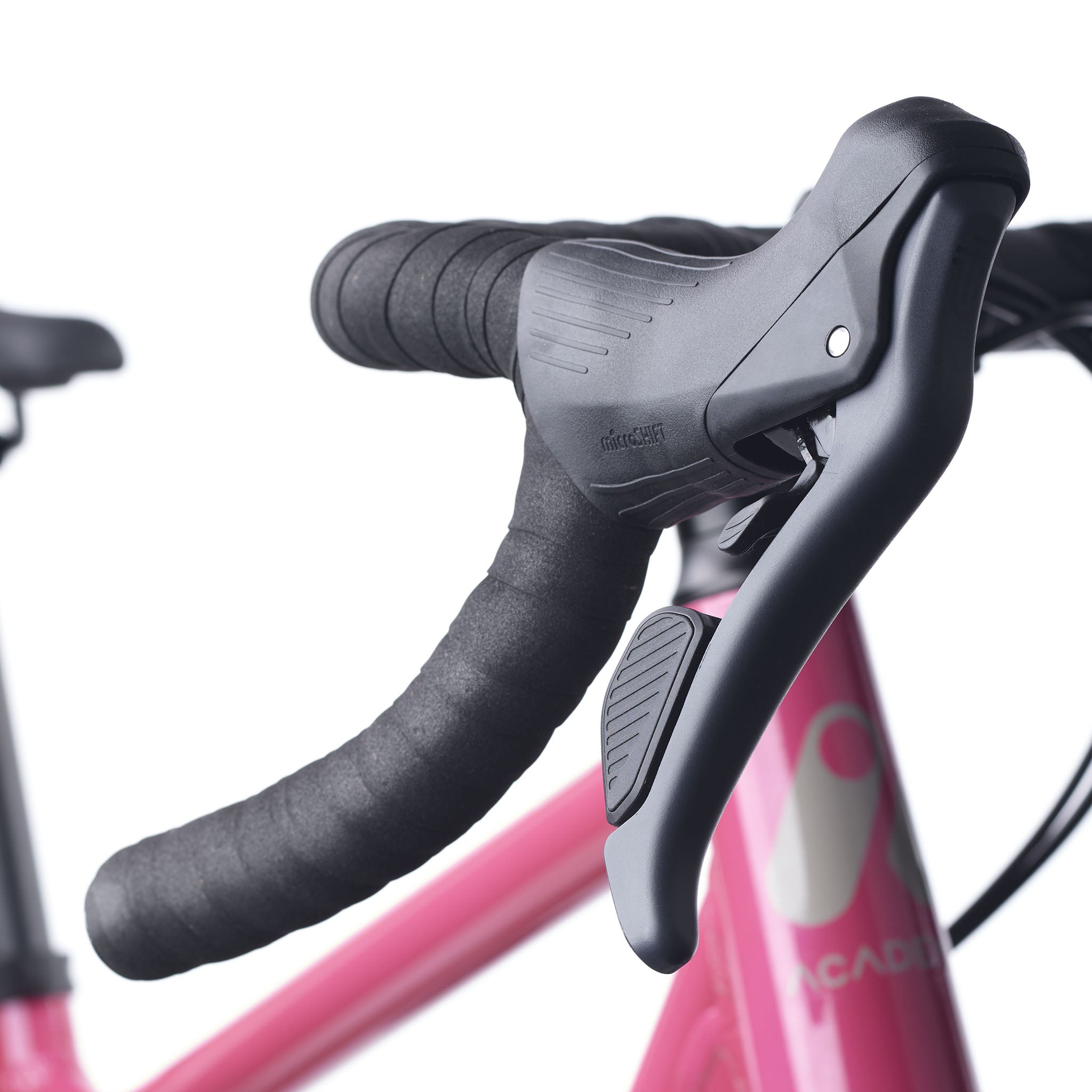

| Brake lever |
Microshift SWORD SB-G7000 Dual Control Lever Dropbar |
| Front brake |

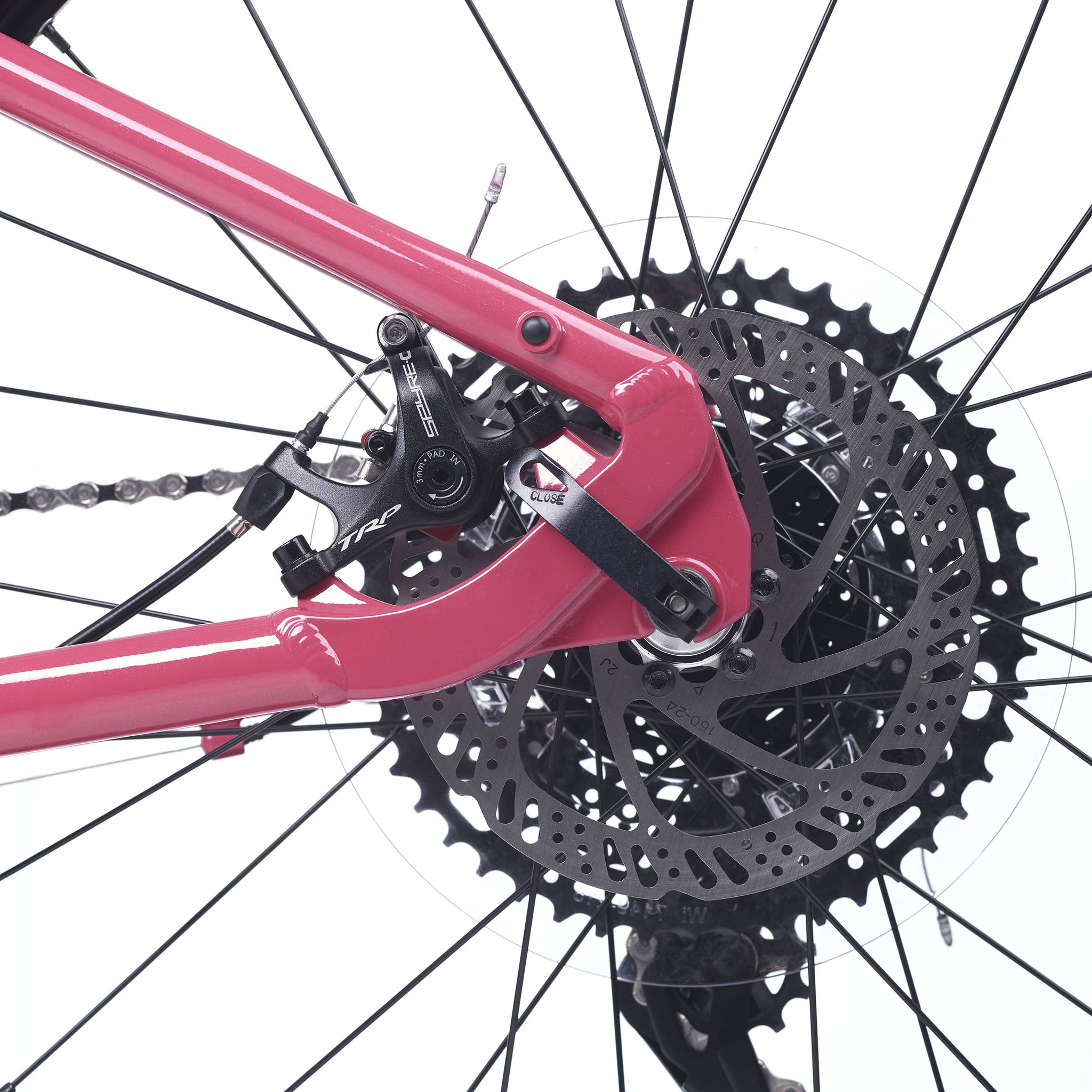

TRP SPYRE, 160mm rotor, flat mount |
| Rear brake |
TRP SPYRE, 160mm rotor, post mount |
| Drive | |
| Gear shift | 10-speed derailleur gears |
| Shift lever | Microshift SWORD SB-G7000 Dual Control Lever Dropbar |
| front derailleur | - |

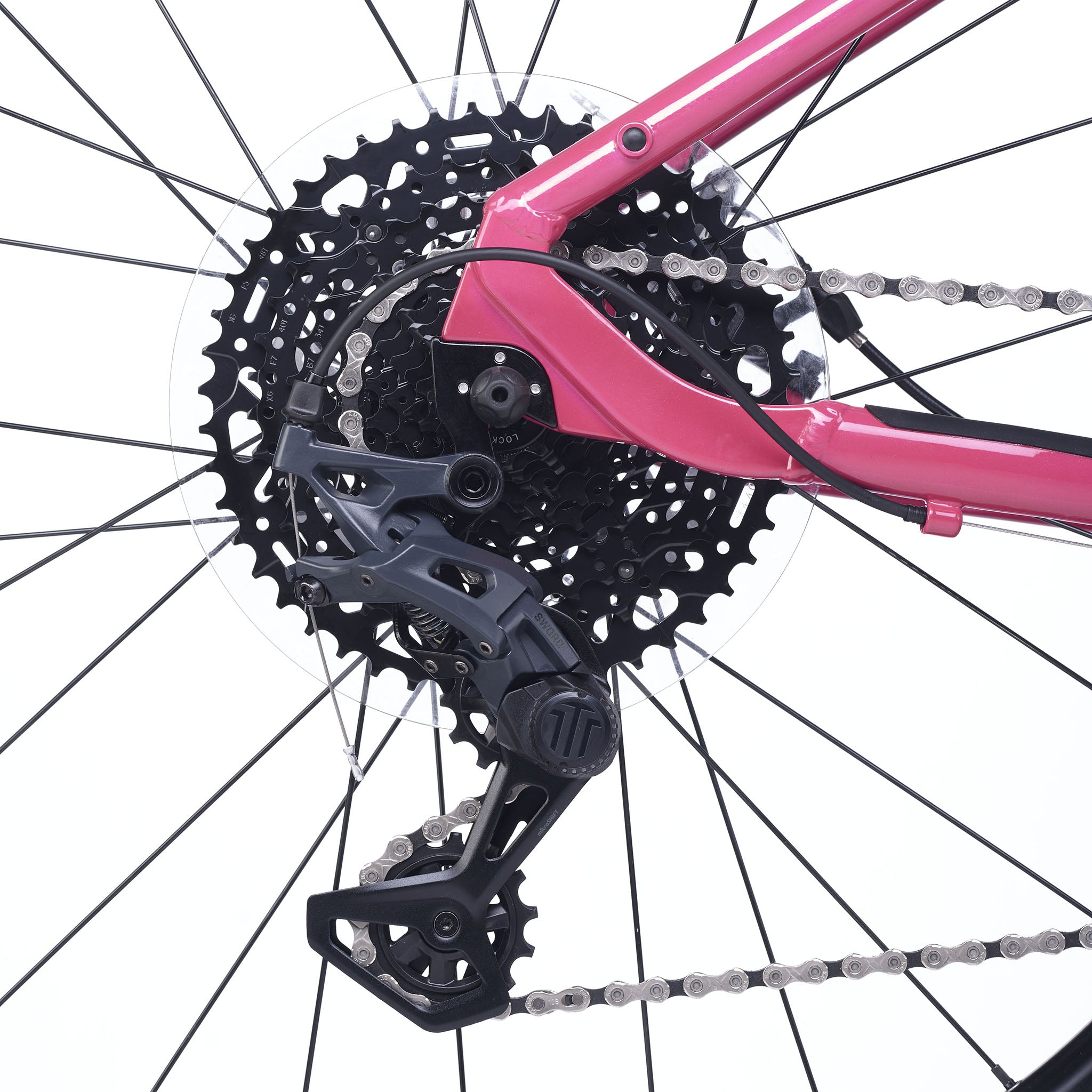

| Rear derailleur | Microshift SWORD RD-G7005M |
| Chain/strap | KMC X10 |
| cassette | Microshift CS-H104 11-48T |

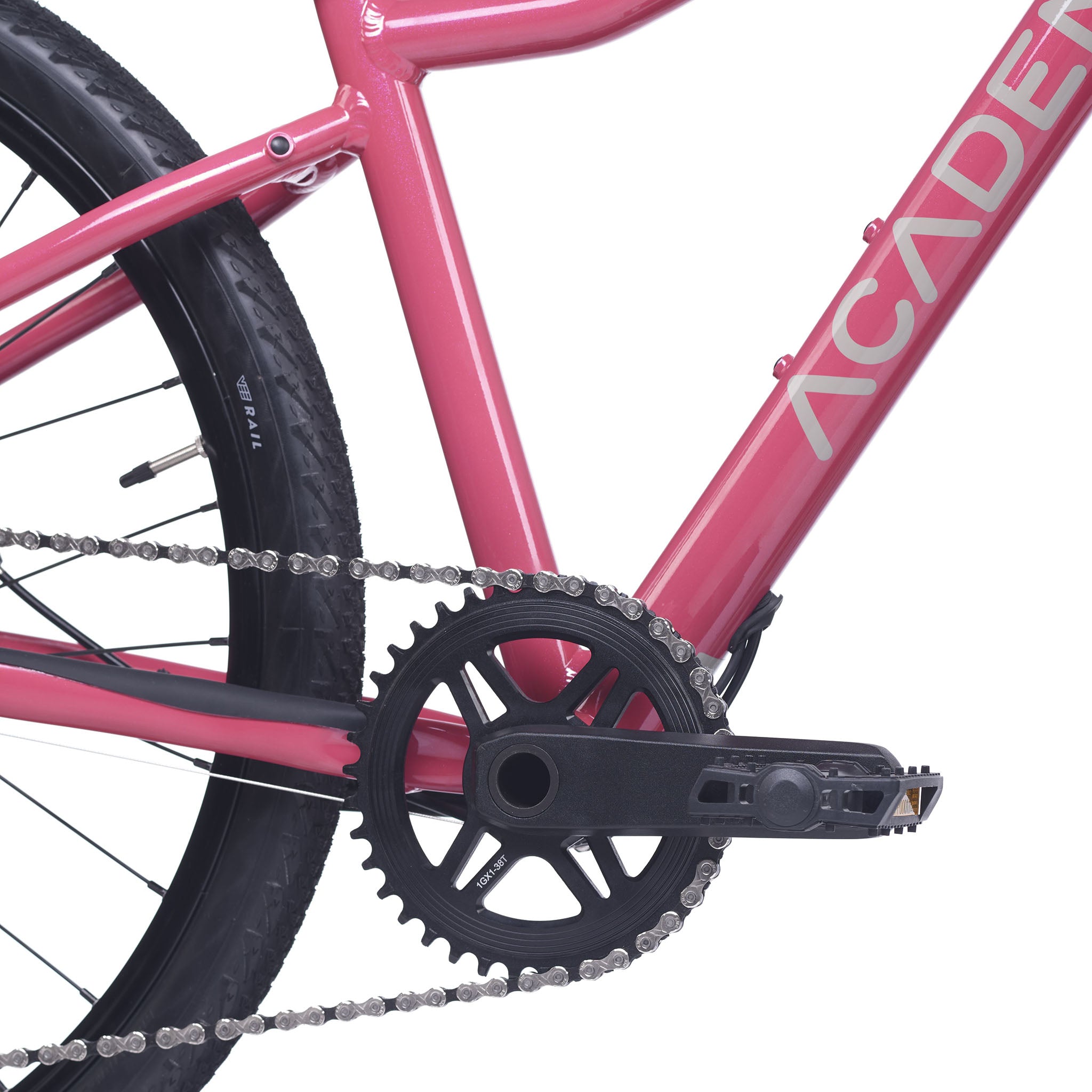

| crankset | Lasco Westy 38T, 150mm, Directmount, Narrow Wide |
| Chain guard | - |
| Pedals | 105x90mm |
| Wheels | |

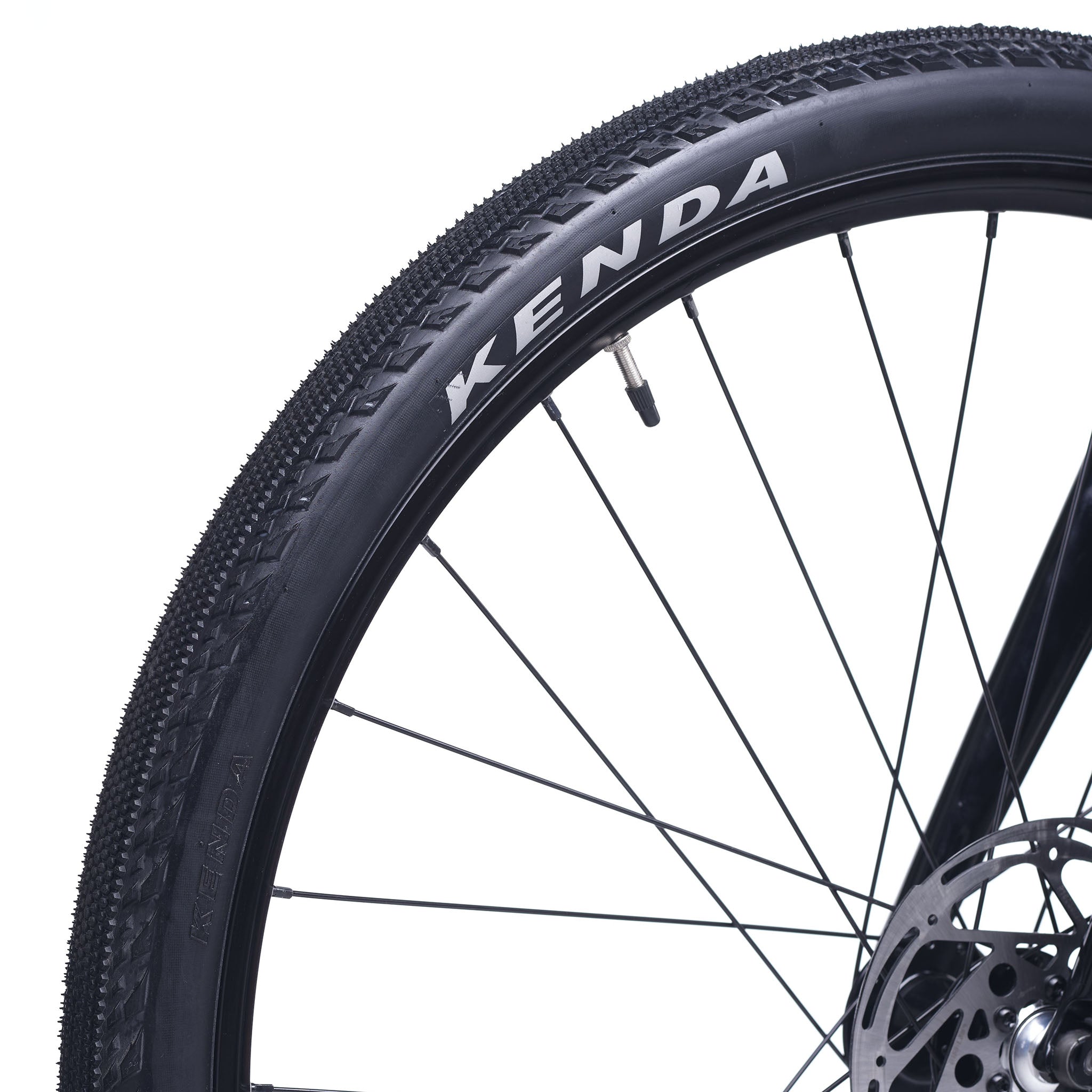

| tires | KENDA Alluvium 650B*45 (45x584) |
| Rims | Aluminum hollow chamber, 14G, 28 holes for disc eyelets |
| Hub front | Aluminum, 14G, 28 holes, black, 6-hole, 100mm OLD, QR |
| Rear hub | Aluminum, 14G, 28 holes, black, 6-hole, 135mm OLD, QR |
| spokes | 14G, black |
| saddle | |
| saddle |
ACADEMY 245x130mm |
| Seat post |
Aluminum 27.2 x 350mm |
| Seat clamp |
31.8mm QR |
| Lighting | |
| Headlight |
- |
| Rear light |
- |
| Dynamo |
- |
| Reflectors |
1x front reflector, 1x rear reflector, 4x spoke reflectors |
| Weight: |
10.5KG |
| Permitted total weight: |
100KG |
| RRP: |
999 € |
Geometry data
Geometry data
| A Wheel size | 27,5" |
| b Seat tube length | 400mm |
| C Seat angle | 73° |
| D Head tube length | 120mm |
| E Steering angle | 70° |
| F horizontal top tube length | 495mm |
| G Chain stay length | 420mm |
| H wheelbase | 977mm |
| I min. saddle height | 750mm |
| J max. saddle height | 950mm |
Ergonomics
| Length of stem | 60mm |
| Angle stem | +/- 7° |
| Wide handlebars | 400mm |
| Length crank | 150mm |
| Seat post length | 350mm |
| Seat post diameter | 27.2mm |
